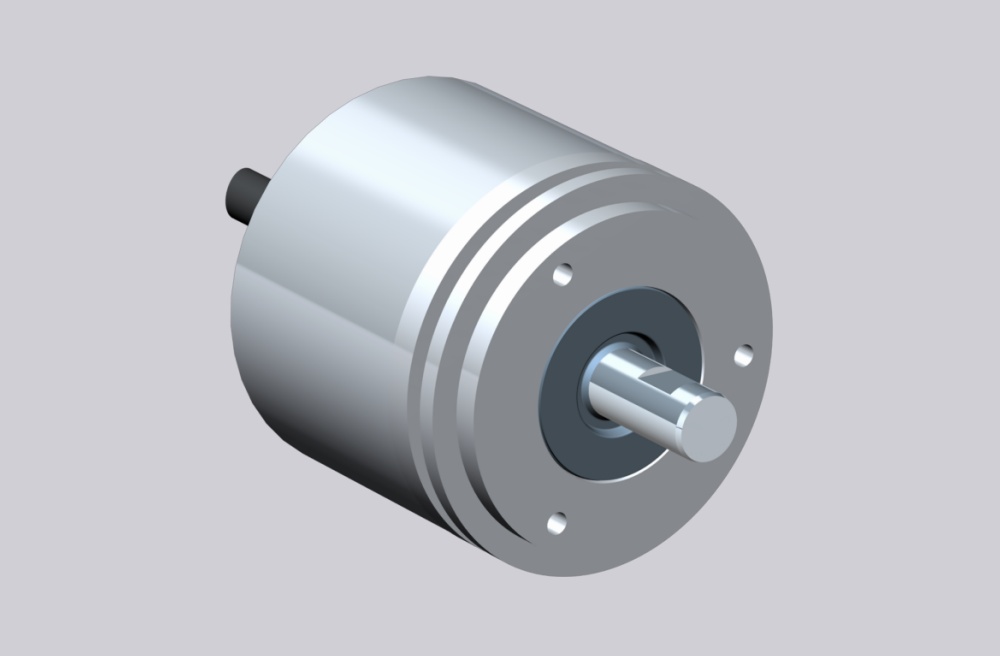

Ruggedized Shaft encoder, Incremental RSI 503
Part number: 517890-10
Robust encoder with solid shaft
Short-circuited protected outputs
IP67 at housing, IP66 at shaft inlet
Specification
| Type | RSI |
| Model | 503 Standard |
| Shaft type | 10 mm with partial flat |
| Flange type | Synchro flange (63-type) |
| Resolution | 1500 ppr |
| Power supply | 9-30 Vdc |
| Output signal | HTL |
| Connection type | PT connector 8-pin |
| Connecting direction | Axial |
| Number of channels | 6 (S00, S00\, S90, S90\, Sref, Sref\) |
