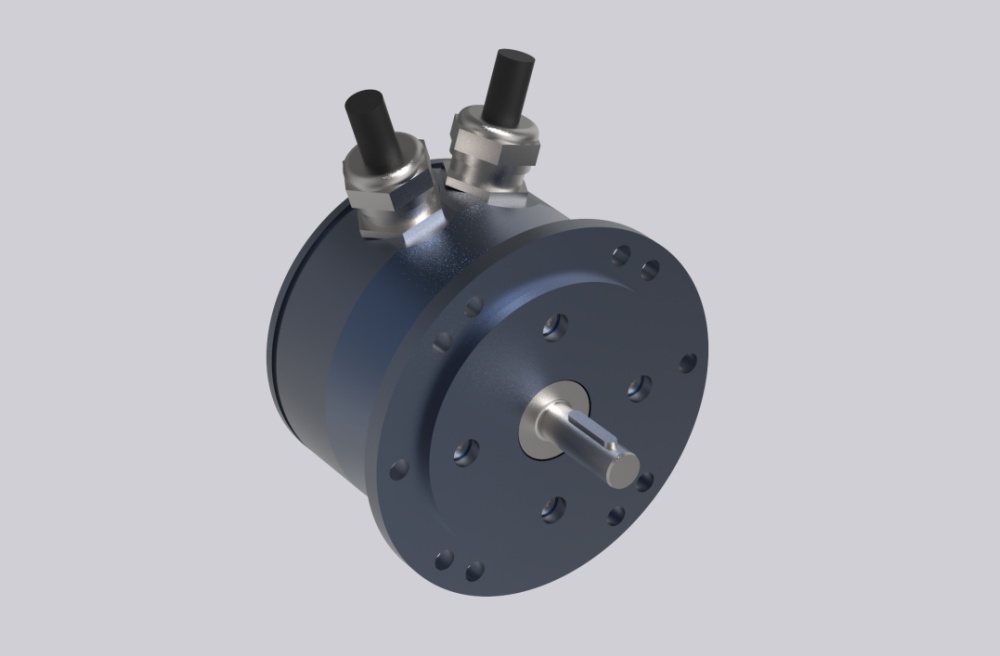

X-heavy duty Shaft encoder, Dual XSD 855
Part number: 1356912-01
Two galvanically separated encoders (A,B) in one housing
Shock and vibration protected
Short-circuit protected outputs
Specification
| Code key | 855039490 |
| Type | XSD |
| Model | 855 |
| Shaft type | 11 mm with key nut |
| Flange type | Euro-flange (B10-type) |
| Connecting direction | Radial |
| Number of channels | 6 (S00, S00\, S90, S90\, Sref, Sref\) |
| Number of channels | 6 (S00, S00\, S90, S90\, Sref, Sref\) |
| Output signal | TTL |
| Output signal | TTL |
| Resolution | 1024 ppr |
| Resolution | 1024 ppr |
