Taper ball nose end mill D1.5-R0.75-1.5-0.9°-10-L50-4-2-HRC70

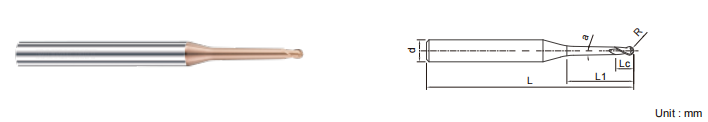

| Diameter | Corner R | Flute length | Cone angle | Effective length | Overall length | Shank Dia | Flutes |
| D1.5 | R0.75 | 1.5 | 0.9° | 10 | L50 | 4 | 2 |
The short edge and avoidance design is adopted to greatly improve the wear resistance of the tool,
and at the same time, it can obtain higher surface qualityof the workpiece;
Mainly for the processing of HRC45-70 hardened steel, especially suitable for precision mold parts
that need to be processed for a long time.
